Description

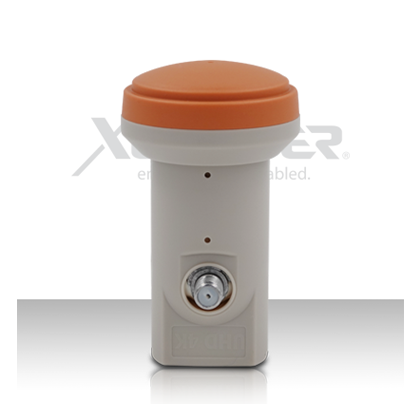

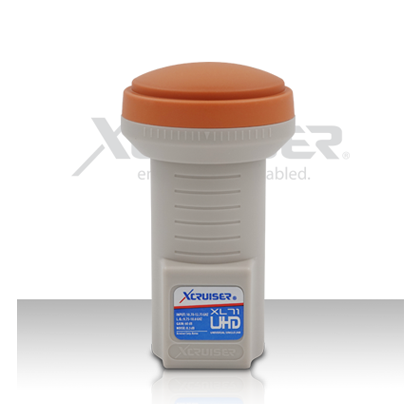

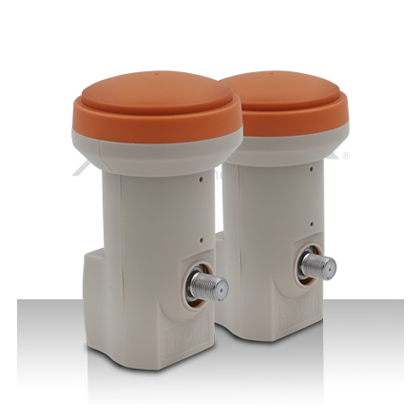

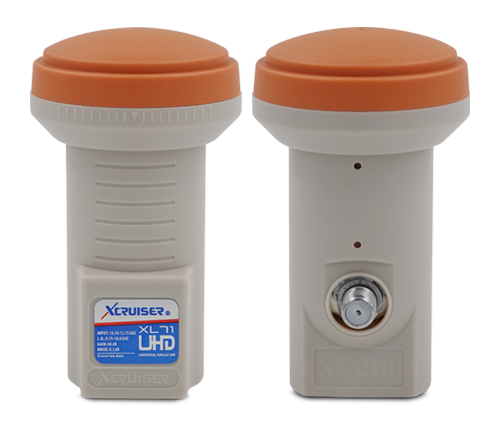

Universal Linear Single Ku-band LNB, PLL (Phase Locked Loop Design) is used for single Set Top Box (STB).

Full coverage of Ku-band:For Free to Air receiver and superior Ku-band reception.

Low noise figure: Low noise figure Single LNB allows reception of Ku-band signals with the highest possible signal level and quality.

Weather protection: Built with heat and waterproof material.

Support: Low power consumption and easy installation.

Product Specification

Input Frequency Range: Low Band 10.70~11.70GHz, High Band 11.70~12.75GHz
Output Frequency Range: Low Band 950~1950MHz, High Band 1100~2150MHz
Noise Figure: 1.0dB(Max) @25℃
Conversion Gain: 60dB
Gain Flatness: ±1.0dB/36MHz
Cross POL. Isolation: 20dB(Min)
L.O. Frequency: Low Band 9.75GHz, High Band 10.60GHz
L.O. Frequency Stability: ±1.0MHz(Max) @+25℃, ±2.0MHz(Max) @-30~+70℃
Operating Temperature: -30℃~+70℃



L.O. Phase Noise: -60dBc/Hz@1KHz, -80dBc/Hz@10KHz, -90dBc/Hz@100KHz
Image Rejection: 40dB(Min)
Output VSWR: 1.24:1(Max)
Output Power: 0dBm (Min) (at 1dB gain compression)
Connector Type: 75Ω Female Connector
DC Current Consumption: 110mA (Max)
Low/High Band Switching: Low Band 0 Hz, High Band 22KHz±4KHz
POL. Switching Voltage: V:10.5~14.5V, H:15.5~21V
