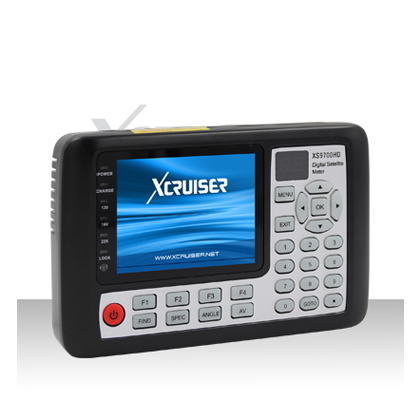

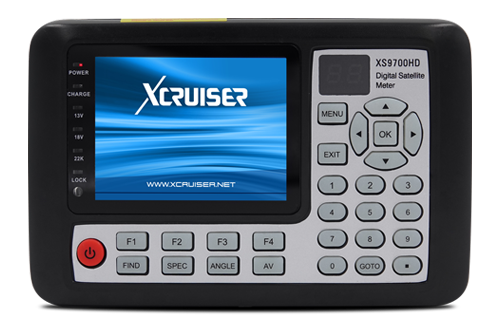

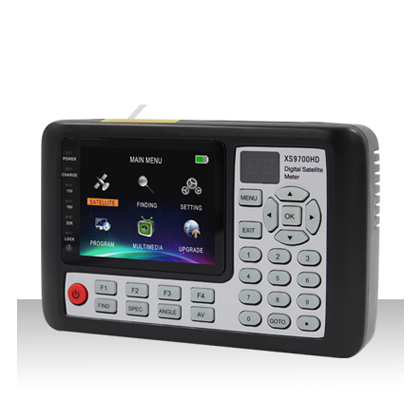

The XS9700HD is the latest model of Satellite signal finding meter, with more advanced features in a compact size.

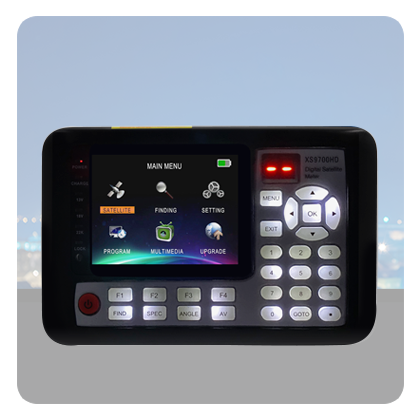

The keypad backlight helps to continue working through the dark.
The included pouch helps improve the screen visibility against the sunshine and protects the device from dust and shocks.
With the multiple channel search option, users can get the particular TP scanned, perform the network scan or Blind scan to get full satellite scanned easily.
XS9700HD can connect through HDMI output to LED/LCD TV to watch channels in a high resolution of 1080p. XS9700HD also supports AV-IN and AV-OUT; the AV-IN can be used for analog CCTV and the AV-OUT can be used to connect to older model televisions.

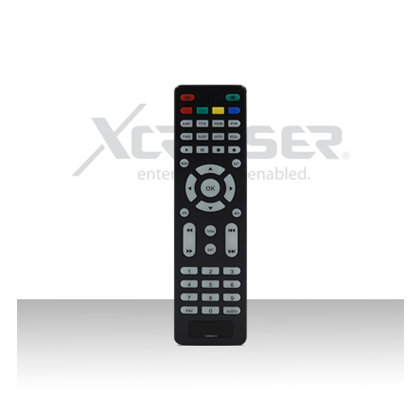

The remote control provided in the box, helps using different features while connected to the TV and during the installation.

Product Specification

Input Signal Frequency Range: 950 ~ 2150MHz
Input Signal Level: -65~-25 dBm
Impedance: 75Ω
Symbol Rate: 1Msps~60Msps
Demodulation: DVB-S QPSK, DVB-S2 8PSK, 16APSK, 32APSK
22k Tone: Supported
DiseqC 1.0: Supported
USUALS: Supported
Device Dimension: 165X105X36mm
LCD Display: 3.5inch


Audio Output: Built-in Loudspeaker
Input Connector: F-Male Type
Keypad: Rubber keypad radium backlight
Power Adaptor: AC 110~240V 50Hz/60Hz
Power Supply: 12V 2000mAh
Battery Power: 8.4V 4400mAh
USB Port: Yes
HDMI Type: Yes, Output
A/V Connection: 3.5mm Jack, Input & Output
Operating Temprature: 0°C~+40°C
