Description

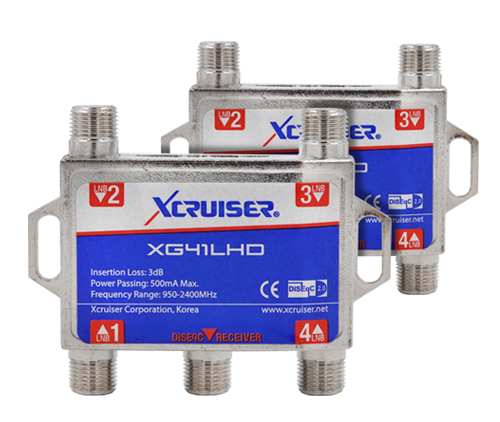

Zinc Die Cast housing, Nickel Plated DiseqC switch is heat resistant and waterproof.
Excellent quality components, professionally designed circuit, compatible with all DVB-S/S2/S2X compliant devices. It supports DiseqC 1.0, DiseqC 2.0 and bi-directional DiseqC with full control functions. Connect up to four different satellites; C-Band and Ku-band while switching between them simultaneously.

Product Specification

Frequency Range: 950-2400MHz
Normal Working Voltage: 12-20V
Insertion Loss: 3dB
DC Power Consumption: 10mA
Isolation: 20dB
DC Max Power Passing: 500mA
Return Loss: 8dB
Impedance (all ports): 75Ω
